Single row track roller – yoke type
2020
Single row track roller – yoke type is characterized by an integrated stud and a thick outer ring that can directly rotate on the mating tracks.
Typically used when high load capacity and high shock resistance are required it can, also, support angular misalignments because of the particular geometry of the generatrix of the outer surface.
Only a watertight version is available.
Some application fields
- general handling
Alternative design
- track roller for low and high temperatures applications
- track roller employed in corrosive environments
- in according to customer drawing

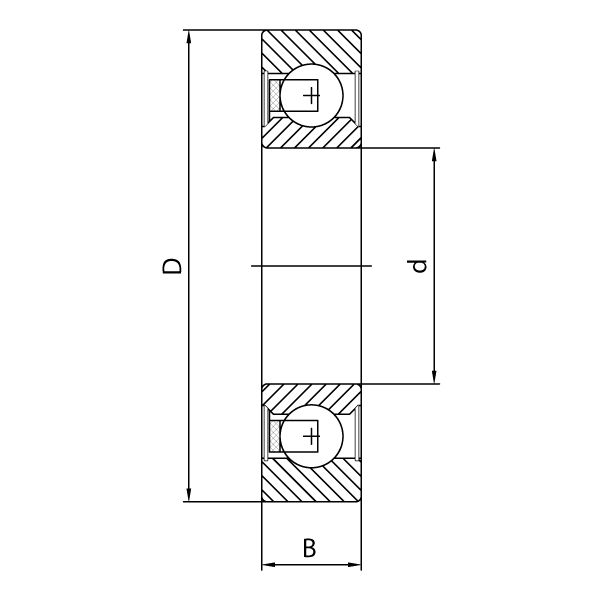

| Production Range | mm d |
mm D |
mm B |
|---|---|---|---|
| Min.value | 4 | 13 | 4 |
| Max. value | 45 | 90 | 19 |
