Needle track roller – yoke type – with cage and removable rings
2001
Needle track roller – yoke type – with cage and removable rings is characterized by a thick outer ring that can directly rotate on the mating tracks.
Typically used when high load capacity and high shock resistance are required it can, also, support angular misalignments because of the particular geometry of the generatrix of the outer surface.
The inner and outer rings are always removable.
Some application fields
- general handling
Alternative design
- track roller for low and high temperatures applications
- track roller employed in corrosive environments
- in according to customer drawing

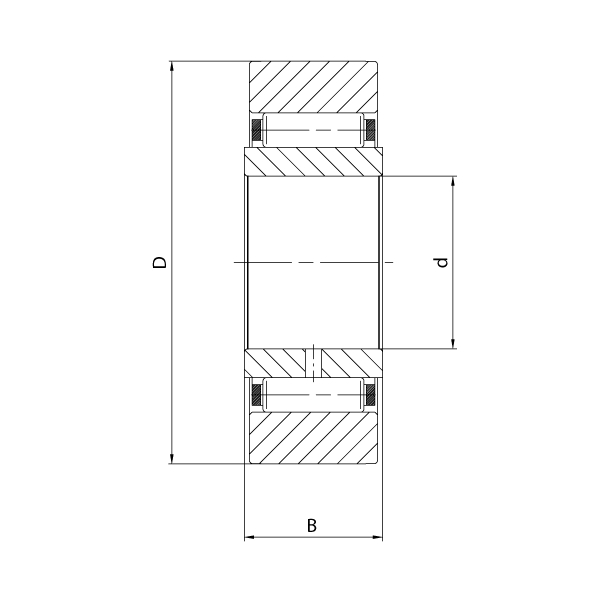

| Production range | mm d |
mm D |
mm B |
|---|---|---|---|
| Min. value | 6 | 16 | 10 |
| Max. value | 50 | 90 | 20 |
